Dichroic Mirrors (Selective Wavelength Reflectors)
Dichroic mirrors (commonly referred to as color mirrors, wavelength-selective reflectors, or dichroic beamsplitters) are specialized optical thin-film components engineered to selectively reflect specific spectral wavelength bands while transmitting the remaining light spectrum with ultra-high efficiency.
Functions:
Utilizes precision multilayer inorganic dielectric interference stacks (PVD-EBGE) to achieve sharp transition slopes, minimal light absorption, and vivid spectral separation. Designed to withstand intense thermal dissipation up to 450°C–500°C without color drift, thermal warping, or film degradation under high-power LED light engines and HID gas-discharge illumination.
Applications:
Architectural floodlighting
RGB light engine combiners
Optical projection systems
Medical diagnostic instruments
Multi-channel machine vision illumination
Intelligent stage lighting luminaires
(moving head spots/washers, scanners, effect lights)

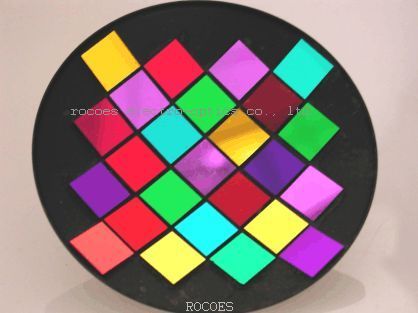

ITEM NO: DICHMIRO
Spectral Characteristics
Red, Orange, Yellow, Blue, Green, Pink, Magenta.
Physical Characteristics
Glass: 1.1mm
Square: 8x8 - 220x220mm
Round: Dia8 - 210mm
*Tempered glass has a minimum size limit.
Resistant Temperature
Glass: 150℃
Information and Notes
1. The spectral reflection behavior and perceived color of dichroic mirrors shift dynamically based on the angle of incidence (AOI). Coatings are optimized for specific operational geometries: small angles (incident light at 5° to 45° relative to the mirror surface normal) and large angles (incident light at 45° to 70°).
2. Dichroic mirrors are manufactured via precision thin-film vacuum deposition, utilizing dielectric interference stacks typically comprising 18 to 32 layers to deliver sharp spectral edge transitions and maximum reflection efficiency.
3. Coating processes utilize high-vacuum Physical Vapor Deposition with Electron Beam Gun Evaporation (PVD-EBGE) technology, ensuring exceptional film density, outstanding thermal endurance (withstanding continuous operation up to 450°C–500°C), and zero color fading under intense light radiation.
4. Website specifications are provided for reference only. Final production and delivery comply with mutually agreed engineering specifications and actual physical products.
