Fiber lighting color wheel
Fiber Optic Lighting Color Wheels (Dichroic Color Wheel Assemblies)
Dichroic color wheels for fiber optic illumination (also referred to as multi-segment optical color discs or rotating fiber illuminator filters) are precision optical assemblies engineered by bonding segmented vacuum-deposited dichroic filters onto dynamic rotating hubs.
Functions:
Installed within high-intensity fiber optic light engines and driven by synchronized stepper or DC motors, these optical color wheels transform static white light into dynamic, multi-colored, flickering, or sequentially flowing illumination across optical fiber bundles. Manufactured using high-vacuum multilayer dielectric deposition (PVD-EBGE), the dichroic filter segments feature ultra-high light transmission, rich spectral saturation, zero color fading, and superior thermal endurance capable of withstanding sustained lamp radiation up to 450°C–500°C.
Applications:
Commercial signage
Museum exhibition lighting
Starfield ceiling projectors

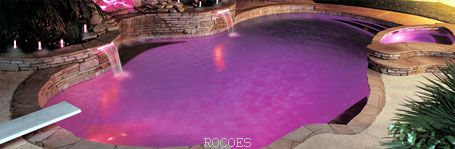

Underwater lighting displays
Outdoor landscape accent lighting
Fiber optic medical illuminators
Decorative architectural fiber illumination
ITEM NO: S90-4
Diameter: 90mm
Inner hole: 10mm
Physical Characteristics
Glass: 1.1mm
Resistant Temperature
Glass:150℃
Option color:
Red, Orange, Yellow, Blue, Green, Pink, Magenta, Cyan, Yellow-green.
ITEM NO: D90-4
Diameter: 90mm
Inner hole: 10mm
Physical Characteristics
Glass: 1.1mm
Resistant Temperature
Glass:150℃
Option color:
Red, Orange, Yellow, Blue, Green, Pink, Magenta, Cyan, Yellow-green.
ITEM NO: D95-4
Diameter: 95mm
Inner hole: 10mm
Physical Characteristics
Glass: 1.1mm
Resistant Temperature
Glass:150℃
Option color:
Red, Orange, Yellow, Blue, Green, Pink, Magenta, Cyan, Yellow-green.
ITEM NO: D95-5
Diameter: 95mm
Inner hole: 10mm
Physical Characteristics
Glass: 1.1mm
Resistant Temperature
Glass:150℃
Option color:
Red, Orange, Yellow, Blue, Green, Pink, Magenta, Cyan, Yellow-green.
ITEM NO: D95-6
Diameter: 95mm
Inner hole: 10mm
Physical Characteristics
Glass: 1.1mm
Resistant Temperature
Glass:150℃
Option color:
Red, Orange, Yellow, Blue, Green, Pink, Magenta, Cyan, Yellow-green.

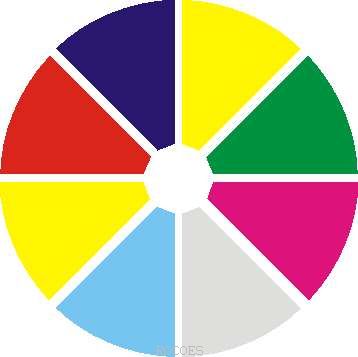

ITEM NO: D124-8
Diameter: 124mm
Inner hole: 25mm
Physical Characteristics
Glass: 1.1mm
Resistant Temperature
Glass:150℃
Option color:
Red, Orange, Yellow, Blue, Green, Pink, Magenta, Cyan, Yellow-green.
Information and Notes
1. Custom manufacturing services are fully supported for fiber optic color wheels. Specifications such as custom spectral bands, color temperature conversion (CTO/CTB), light attenuation control, outer diameter, center bore dimensions, and heat-resistant glass substrate selection can be tailored to client requirements.
2. Fiber optic dichroic filter segments are manufactured using precision thin-film vacuum deposition, featuring multilayer dielectric stacks typically comprising 21 to 42 layers to achieve high color saturation and sharp wavelength separation.
3. Advanced Physical Vapor Deposition with Electron Beam Gun Evaporation (PVD-EBGE) technology ensures high film density, exceptional adhesion, high thermal resistance (withstanding continuous operation up to 450°C–500°C), and zero color fading over prolonged use.
4. Website specifications are provided for reference only. Final production and delivery comply with mutually agreed engineering specifications and actual physical products.
