Thing Glass
Ultra-Thin Glass Substrates
Ultra-thin optical glass substrates (also known as thin glass sheets or precision micro-glass) are high-grade optical materials engineered for applications requiring minimal physical thickness, ultra-lightweight profiles, and exceptional surface quality.
Functions:
Delivers outstanding total light transmittance, precise surface parallel flatness, and low surface roughness. Ideal for compact optical stack integration, semiconductor-level optical coatings, micro-display covers, and weight-sensitive optoelectronic systems.
Applications:
Precision instrument viewports
Optical coating substrates
CMOS/CCD sensor cover glass
Micro-optics components
Mobile display windows
Wearable optical modules
#Glass0.55 #Glass0.7 #EXG0.7
#Information and Notes
ITEM NO:0.21-0.2 (CORNING 0211)
Spectral Characteristics
Tave>92% @ 380-700nm
Physical Characteristics
Thickness: 0.2mm
Square: 3x3 - 330x360mm
Round: Dia3 - 300mm
Resistant Temperature
150℃
Manufacturer: CORNING

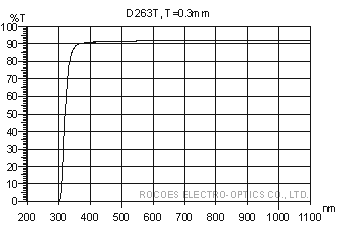

ITEM NO:D263T 0.3 (SCHOTT D263T)
Spectral Characteristics
Tave>92% @ 380-700nm
Physical Characteristics
Thickness: 0.21, 0.3mm
Square: 3x3 - 330x360mm
Round: Dia3 - 300mm
Resistant Temperature
350℃
Manufacturer: SCHOTT AG
ITEM NO:Glass0.4
Spectral Characteristics
Tave>92% @ 380-700nm
Physical Characteristics
Thickness: 0.4mm
Square: 3x3 - 300x400mm
Round: Dia3 - 300mm
Resistant Temperature
150℃
ITEM NO:Glass0.5
Spectral Characteristics
Tave>92% @ 380-700nm
Physical Characteristics
Thickness: 0.5mm
Square: 3x3 - 300x400mm
Round: Dia3 - 300mm
Resistant Temperature
150℃

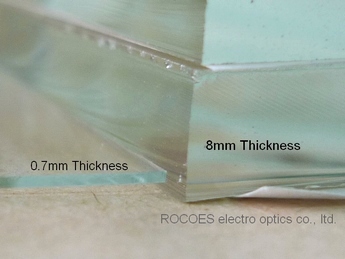

ITEM NO:Glass0.7
Spectral Characteristics
Tave>92% @ 380-700nm
Physical Characteristics
Thickness: 0.7mm
Square: 3x3 - 300x400mm
Round: Dia3 - 300mm
Resistant Temperature
150℃
ITEM NO:EXG0.7 (CORNING Eagle XG)
Spectral Characteristics
Tave>92% @ 380-700nm
Physical Characteristics
EAGLE XG: 0.7mm
Square: 3x3 - 300x400mm
Round: Dia3 - 300mm
Resistant Temperature
450℃
Manufacturer: CORNING
Information and Notes
1. Premium optical thin glass offers superior light transmittance compared to standard commercial float glass, manufactured under strict quality standards to ensure exceptional surface quality and minimal internal bubbles or inclusions.
2. Custom geometrical profiles, non-standard thicknesses, CNC edge grinding, and precision drilling are available to meet OEM integration requirements.
3. Spectral transmittance curves represent measurements at normal incidence (0° angle of incidence). Non-transmitted light within the spectrum is absorbed by the physical optical properties of the glass substrate.
4. For applications requiring maximized light throughput, please refer to our Anti-Reflective (AR) Coating Solutions.
5. To enhance mechanical strength and thermal shock resistance, please explore our Tempered Glass Solutions.
6. Website specifications are provided for reference only. Final production and delivery comply with mutually agreed engineering specifications.
7. Corning 0211 and EAGLE XG are registered trademarks of Corning Incorporated.
8. SCHOTT D263T is a registered trademark of SCHOTT AG.
