Corning optical glass substrates (including high-performance EAGLE XG, Corning 0211 micro-sheet glass, and Gorilla Glass) are world-class optical-grade glass substrates engineered for demanding optoelectronic and display applications.

Functions:
Offers exceptional surface parallel flatness, high broadband light transmittance, and superior dimensional stability. Features alkali-free chemical composition options and ultra-smooth surface quality to optimize optical clarity and performance in thin-film coating deposition.

Applications:
Precision instrument viewports
Optical coating substrates
CMOS/CCD image sensor covers
Display panel substrates
Smart wearable devices
High-durability sensor protection covers.

#0211 #EXG0.7 #E2000
#Information and Notes corning 0211 0.2mm

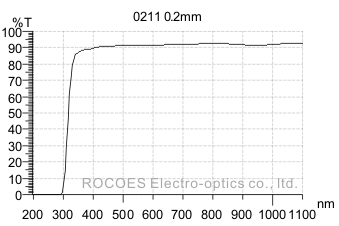

ITEM NO:0211 (CORNING 0211)

Spectral Characteristics

Tave>92% @ 380-700nm

Physical Characteristics

0211: 0.2, 0.3mm

Square: 3x3 - 330x360mm

Round: Dia3 - 300mm

Resistant Temperature

150℃

Manufacturer:CORNING

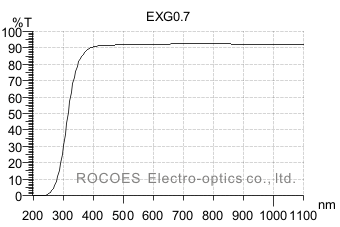

ITEM NO:EXG0.7 (CORNING Eagle XG)

Spectral Characteristics

Tave>90% @ 400-700nm

Physical Characteristics

EAGLE XG: 0.7mm

Square: 8x8 - 550x650mm

Round: Dia8 - 300mm

Resistant Temperature

450℃

Manufacturer:CORNING

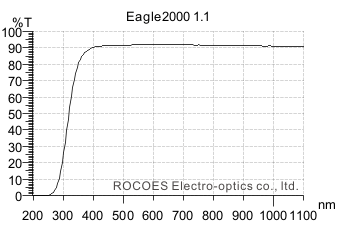

ITEM NO:E2000 (CORNING Eagle 2000)

Spectral Characteristics

Tave>92% @ 360-1100nm

Tave<1% @ 200-260nm

Physical Characteristics

Thickness: 0.7, 1.1mm

Square: 8x8 - 500x500mm

Round: Dia8 - 500mm

Resistant Temperature

450℃

Manufacturer:CORNING

Information and Notes

1. Premium Corning optical glass offers superior light transmittance compared to standard commercial float glass, manufactured under strict quality control standards to ensure exceptional surface quality and minimal internal bubbles or inclusions.

2. Custom geometrical profiles, non-standard thicknesses, CNC edge grinding, and precision drilling are available to meet OEM integration requirements.

3. Spectral transmittance curves represent measurements at normal incidence (0° angle of incidence). Non-transmitted light within the spectrum is absorbed by the physical optical properties of the glass substrate.

4. For applications requiring maximized light throughput, please refer to our Anti-Reflective (AR) Coating Solutions.

5. Compatible Corning glass substrates (such as Gorilla Glass or alkali-containing formulations) can be chemically strengthened to significantly increase impact and scratch resistance. For details, please refer to our Chemically Strengthened Glass Solutions.

6. Website specifications are provided for reference only. Final production and delivery comply with mutually agreed engineering specifications.

7. Corning 0211, EAGLE 2000, EAGLE XG, and GORILLA are registered trademarks of Corning Incorporated.
