Al Mirrors
Al Mirrors
Also known as Aluminum Mirrors or Front Surface Mirrors.
Functions:
Aluminum Mirrors feature an aluminum film with a transparent protective coating that reflects ultraviolet (UV), visible, and near-infrared (NIR) light across wide incident angles. Built on heat-resistant substrates, they offer high temperature resistance, long operational lifespan, and excellent oxidation resistance.
Applications:
Laser systems and applications
Automated optical inspection (AOI) equipment
Optical instruments and systems
Imaging and projection systems
ITEM NO: ALMIRO (Aluminum Mirrors)
Spectral Characteristics
Rave>94% @ 430-670nm
Features an aluminum-coated surface overcoated with a transparent protective layer to enhance durability, prevent oxidation, and protect against mechanical damage.
Physical Characteristics
Glass: 1.1, 1.25, 2.0, 3.0mm
Square: 8x8 - 500x500mm
Round: Dia8 - 450mm
Resistant Temperature
Glass:150℃
Information and Notes
1. Aluminized or gold-plated coatings can be applied as a foundry service or supplied by the customer.
2. Coating process: PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation).

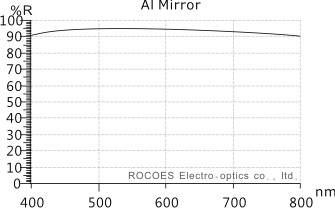

3. The spectral curves shown are measured at an incident angle of 0° (AOI = 0°).
4. The spectral curve represents measured sample values and may vary slightly from manufacturing lot to lot, but conforms to standard optical definitions.
5. Physically Tempered Glass has limitations regarding minimum thickness, dimensions, and custom shapes.
6. The designation "Dia." is an abbreviation for diameter.
7. Website specifications are for reference only; final shipments are subject to the agreed specifications confirmed by both parties.
