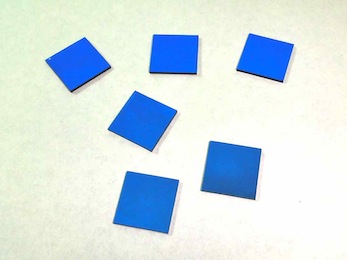

Blue Reflector
Blue Reflector
Also known as Blue Mirrors or Blue Dichroic Mirrors.
Functions:

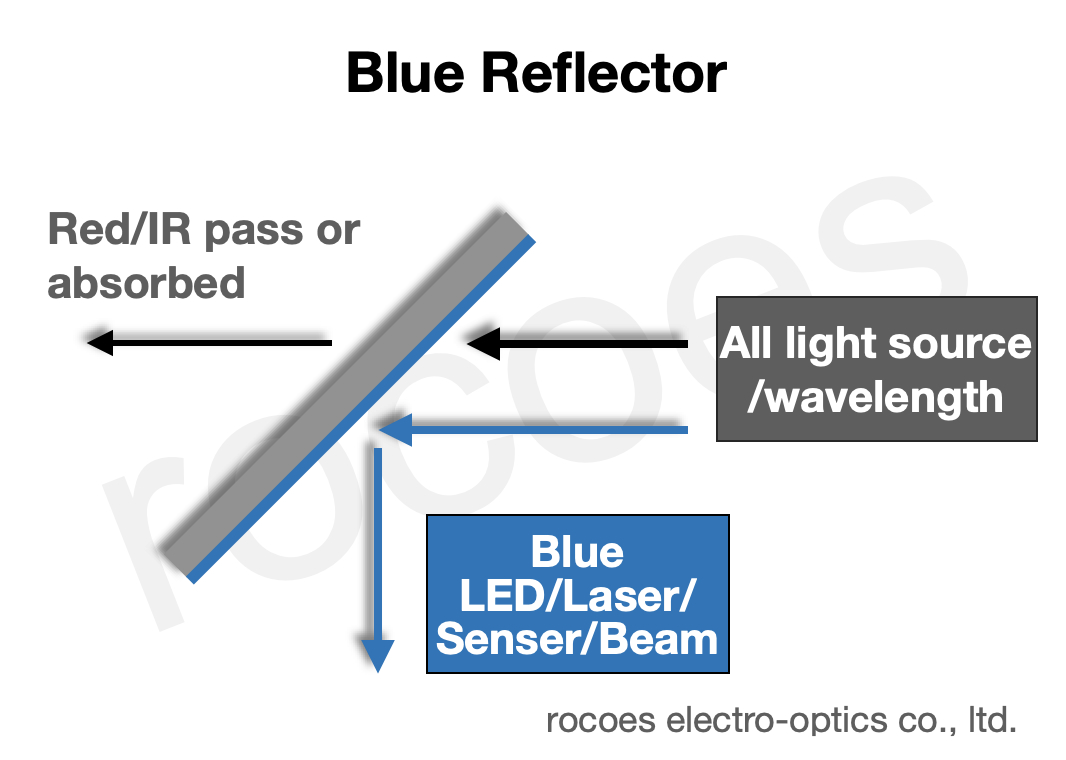

Offers high reflectivity across the blue laser spectrum with absorption below 1%, providing high-efficiency reflection for blue light applications.
Applications:
Blue LED systems and illumination
Blue laser optics and diode applications
ITEM NO: RB4550
Spectral Characteristics
Rave>98% @ 620-680nm
Physical Characteristics
Glass: 0.4, 0.55, 0.7, 1.1mm
Square: 8x8 - 160x160mm
Round: Dia8 - 150mm
Resistant Temperature
Glass: 150℃
Information and Notes
1. Blue Reflectors perform optimally at incident angles between 5° and 45° (measured between the incident light and the reflector surface). Custom angle-of-incidence (AOI) coatings are available upon request.
2. Blue reflectors feature multilayer dielectric films deposited via vacuum evaporation, achieving high-reflectivity spectral characteristics.
3. Coating method: PVD-EBGE (Physical Vapor Deposition - Electron Beam Gun Evaporation).
4. Website specifications are for reference only; final shipments are subject to the specifications confirmed by both parties.
5. Browse below for related products and additional technical details:
* Green Pass / Red Reflector Filters
