Red/Infra pass Filters

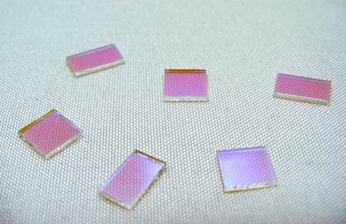

Red / Infrared Pass Filters (Red / IR Pass)
Also known as Cold Mirrors or Longpass Filters.
Functions:
Designed to block (absorb or reflect) visible light while transmitting infrared light, or to reflect short-wavelength visible light while allowing red and near-infrared laser light to pass with high transmission.
Applications:
Night vision security cameras and surveillance systems
Barcode scanners and reader optics
Laser spirit levels and line laser instruments
Laser distance meters and rangefinders
Infrared sensing and receiving optical systems
▽IR700C ▽IR900C ▽ARIR
▽BP6070 ▽BP8090 ▽BP8493
▽BP8998 ▽Information and Notes

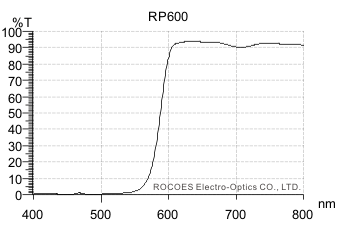

ITEM NO: RP600
Spectral Characteristics
Tave>90% @ 620-700nm
Tave<1% @ 400-520nm
Physical Characteristics
Glass: 0.4, 0.55, 0.7, 1.1mm
Square: 3*3 - 160*160mm
Round: Dia3 - 150mm
Resistant Temperature
Glass:150℃

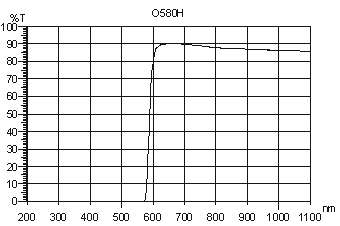

ITEM NO: O580H
Spectral Characteristics
Tave>85% @ 600-1100nm
Tave<1% @ 200-560nm
Physical Characteristics
Glass filters: 1.0~3.5mm
Square: 3*3 - 100*100mm
Round: Dia10 - 100mm
Resistant Temperature
Glass filters: 100℃

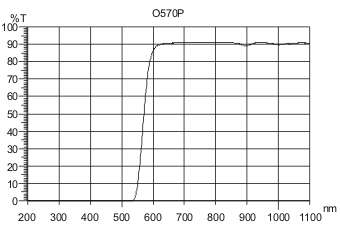

ITEM NO: O570P
Spectral Characteristics
Tave>80% @ 600-1100nm
Tave<1% @ 200-540nm
Physical Characteristics
PMMA: 2.0, 3.0mm
Square: 20*20 - 800*800mm
Round: Dia20 - 600mm
Resistant Temperature
PMMA: 50℃

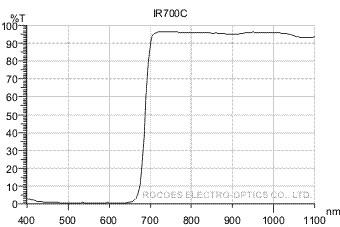

ITEM NO: IR700C
Spectral Characteristics
Tave>88% @ 750-1100nm
Tave<1% @ 400-650nm
Physical Characteristics
Glass: 0.7, 1.1mm
Square: 3*3 - 220*220mm
Round: Dia4 - 210mm
Resistant Temperature
Glass: 150℃

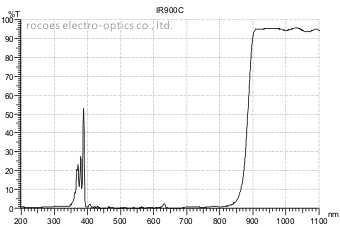

ITEM NO: IR900C
Spectral Characteristics
Tave>85% @ 850-1100nm
Tave<1% @ 400-780nm
Physical Characteristics
Glass: 0.7, 1.1mm
Square: 3*3 - 220*220mm
Round: Dia4 - 210mm
Resistant Temperature
Glass:150℃
ITEM NO:ARIR
Spectral Characteristics
Tave>99% @ 800-1100nm
Physical Characteristics
B270: 1.1, 2.0, 3.0mm
D263: 0.3mm
No-Alkali: 0.7mm
Square: 5*5 - 220*220mm
Round: Dia5 - 210mm
Resistant Temperature
B270:150℃
D263:150℃
No-Alkali:250℃
ITEM NO: BP6070
Spectral Characteristics
Tave<7% @ 420-550nm
Tave>80% @ 640-660nm
Tave<7% @ 750-1100nm
Physical Characteristics
Glass: 0.7, 1.1mm
Square: 3*3 - 220*220mm
Round: Dia4 - 210mm
Resistant Temperature
Glass:150℃
ITEM NO: BP8090
Spectral Characteristics
Tave<5% @ 420-650nm
Tave>75% @ 840-860nm
Tave<5% @ 950-1100nm
Physical Characteristics
Glass: 0.7, 1.1mm
Square: 3*3 - 220*220mm
Round: Dia4 - 210mm
Resistant Temperature
Glass:150℃
ITEM NO: BP8493
Spectral Characteristics
Tave<5% @ 420-780nm
Tave>75% @ 850-904nm
Tave<5% @ 1050-1100nm
Physical Characteristics
Glass: 0.7, 1.1mm
Square: 3*3 - 220*220mm
Round: Dia4 - 210mm
Resistant Temperature
Glass:150℃
ITEM NO: BP8998
Spectral Characteristics
Tave<5% @ 420-830nm
Tave>80% @ 930-950nm
Tave<5% @ 1050-1100nm
Physical Characteristics
Glass: 0.7, 1.1mm
Square: 3*3 - 220*220mm
Round: Dia4 - 210mm
Resistant Temperature
Glass:150℃
Information and Notes
1. IR Pass filters / Cold Mirrors provide bandpass or longpass performance for optical sensors, red laser systems, and night vision devices.
2. Custom optical coating services are available upon request based on required wavelength ranges, bandwidths, and transmittance specifications.
3. IR Pass filters / Cold Mirrors feature multilayer dielectric films deposited via vacuum evaporation, typically consisting of 36 to 58 coating layers according to custom designs.
4. Coating process: PVD-EBGE (Physical Vapor Deposition - Electron Beam Gun Evaporation).
5. O580H is an absorptive colored glass filter. It is manufactured from formulated glass blocks processed through slicing, grinding, and polishing, achieving optical blocking via internal material absorption.
6. O570P is an optical acrylic (PMMA) material suitable for injection molding. While initial tooling/mold costs are higher, it offers lower unit costs ideal for high-volume mass production.
7. The spectral transmittance curves shown are measured at a 0° angle of incidence (AOI = 0°).
8. Spectral curves represent actual sample measurements and may vary slightly from manufacturing lot to lot, while remaining within defined optical specifications.
9. Website specifications are for reference only; final shipments are subject to the specifications confirmed by both parties.
