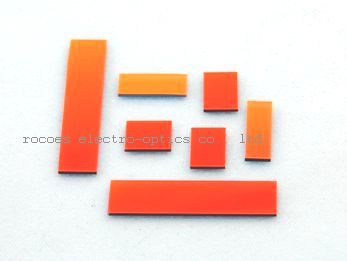

Red Reflector
Red Reflector
Also known as Barcode Mirrors, Red Laser Mirrors, or Red Dichroic Mirrors.
Functions:

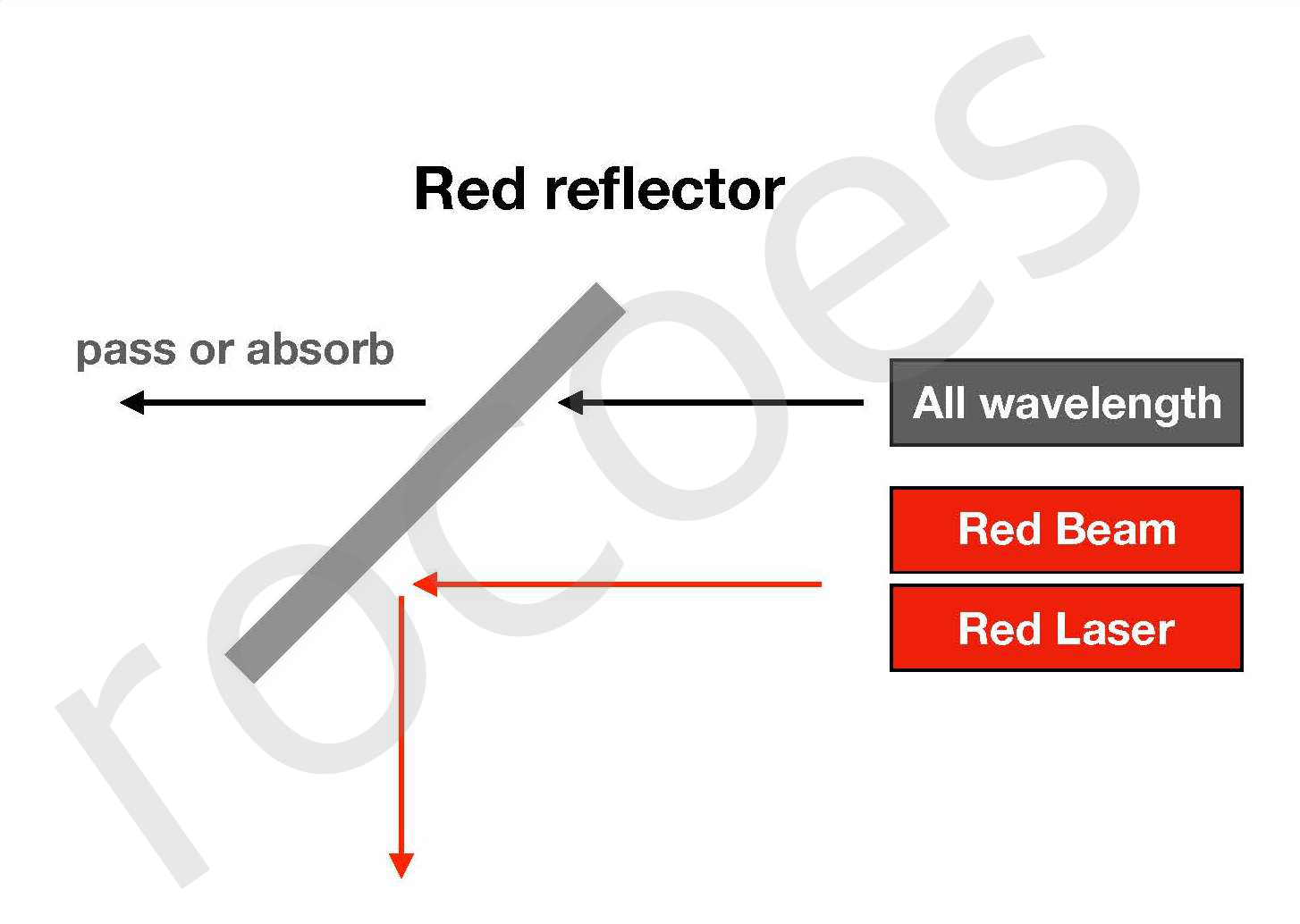

Designed for high reflectivity across the red laser spectrum with optical absorption below 1%, ensuring maximum reflection efficiency with minimal insertion loss for red and near-infrared laser optical systems.
Applications:
Barcode scanners and barcode readers
Laser spirit levels and line laser modules
Horizontal and vertical cross-line lasers
Rotary laser levels and alignment tools
Red laser diode systems
ITEM NO: RR6070
Spectral Characteristics
Rave>98% @ 620-680nm
Physical Characteristics
Glass: 0.4, 0.55, 0.7, 1.1mm
Square: 8x8 - 160x160mm
Round: Dia8 - 150mm
Resistant Temperature
Glass: 150℃
Information and Notes
1. Red Reflectors perform optimally at angles of incidence ranging from 5° to 45° (measured relative to the surface normal); custom coatings for specific angle-of-incidence (AOI) requirements are available upon request.
2. Red reflectors feature multi-layer dielectric interference thin films deposited via vacuum evaporation, achieving high-reflectivity spectral performance and sharp cut-on characteristics across target red wavelengths.
3. Coating process: PVD-EBGE (Physical Vapor Deposition - Electron Beam Gun Evaporation), delivering high film density, minimal optical absorption, superior thermal stability (450°C–500°C), and exceptional mechanical adhesion.
4. Specifications listed on this website are for general reference only. Delivered products strictly comply with mutually approved formal technical specification sheets.
