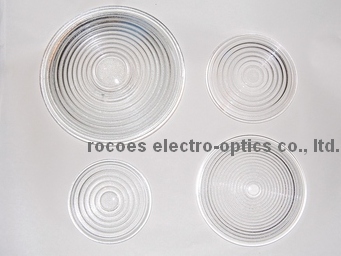

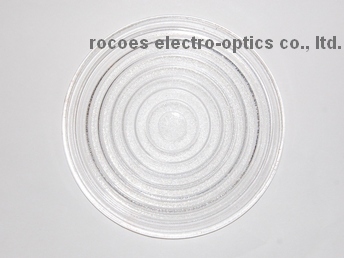

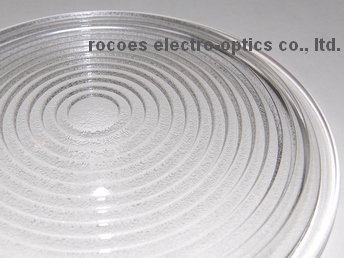

Glass Fresnel Lenses (Heat-Resistant Optics)
Glass Fresnel lenses are optical components manufactured with concentric micro-grooves precision-molded into one surface, functioning as a continuous series of individual refracting surfaces to concentrate and shape light beams.
Functions:
Provides short focal lengths, high luminous flux, and compact optical profiles while dramatically reducing lens mass and glass volume compared to conventional thick optical lenses. Engineered from high-purity, heat-resistant glass to withstand high thermal loads in continuous high-wattage illumination systems without thermal distortion.
Applications:
Stage spotlights
Theatrical fixtures
Architectural searchlights
High-bay industrial luminaires
Solar concentration collectors
Maritime lighthouse optics.
Standard Products List
ITEM NO. Diameter Focus Material
ROFL-01 110 110 Borosilicate
ROFL-02 130 70 Borosilicate
ROFL-03 150 70 Borosilicate
ROFL-04 200 120 Borosilicate
Unit:mm
Information and Notes
1. Glass Fresnel lenses supplied by ROCOES are manufactured from optical-grade heat-resistant glass, engineered to withstand high operating temperatures in stage luminaires and spotlight fixtures without thermal distortion.
2. Website specifications are provided for reference only. Final production and delivery comply with mutually agreed engineering specifications and actual physical products.
